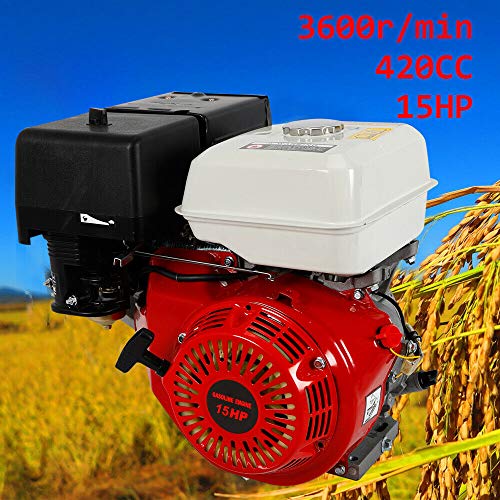

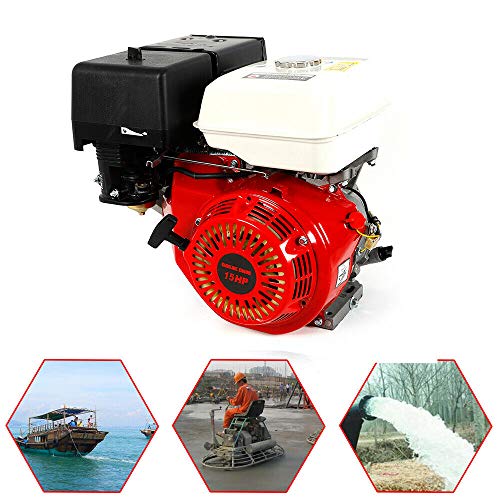

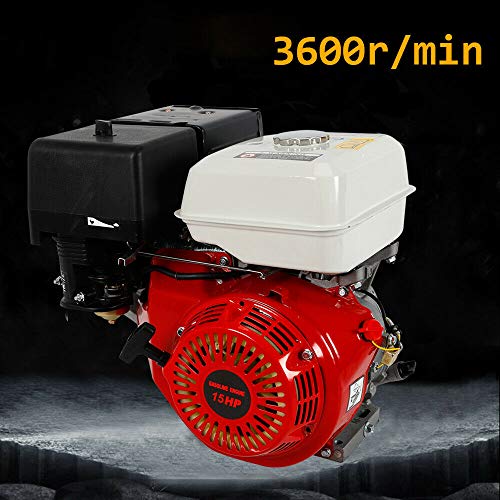

DNYSYSJ 4 Stroke 420CC 15HP OHV Petrol Engine, Diesel Engine Air-Cooled Single Cylinder Electric Start Engine Gas Power…

It must be 1.1L  Motorcycle 4-stroke engine oil to make sure the machine work well.

Note：This petrol engine is a manual recoil start, not an electric start.

Specifications :

Model： 190F

Gasoline engine type: 4 Stroke OHV Single Cylinder

Rated power :9kw/3600r/min

Max Power: 15 HP @ 3600 RPM

Fuel consumption :374g/kw.h

Bore diameter X stroke: 90x66mm

Ignition Type: TCI No Contact Transistorized

Starting Type: Recoil Pull Start

Charging Coil: 3 Amp

Fuel Tank Capacity: 1.72 Gal.

Shaft Type: Keyed – Straight

Shaft Diameter: 25mm Keyway

Engine Cooling Type: Forced Air Cooling

Fuel tank capacity: 6.5 liters

Oil capacity :1.1 liters

Displacement: 420CC

Carton size :56x42x48cm

Net weight: 30.5kg

Why choose us?

1. Easy to start carburetor, low fuel consumption

2. With oil alarm. With memory function, high sensitivity, add enough oil before starting, otherwise it will turn off the flame to protect the machine.

3. Iron camshaft

4. After 100 hours of intensive running test, it is durable.

5. Anti-low temperature treatment pull wire 100% nylon does not lint.

6. The soft rubber handle of the handle does not hurt the hand, and the metal frame is more textured.

7. The air filter is a common air filter

8. Thick silencer has good drying effect

9. Threaded fuel tank cap, there is a nitrile rubber gasket under the fuel tank to prevent vibration from damaging the fuel tank, suitable for construction machinery such as impact rafts

10. The rubber air filter gasket makes the carburetor tighter, does not leak, and has better performance.

12. Wide snap ring prevents the tubing from being damaged by heat

13. The crankshaft diameter is 25mm of the keyway shaft

Make sure this fits by entering your model number.
【Main Paramaters】Rated power :9kw/3600r/min,Max Power: 15 HP @ 3600 RPM,Fuel consumption :374g/kw.h,Bore diameter X stroke: 90x66mm.Ignition Type: TCI No Contact Transistorized,Starting Type: Recoil Pull Start,Charging Coil: 3 Amp,Fuel Tank Capacity: 1.72 Gal.,Shaft Type: Keyed – Straight,Shaft Diameter: 25mm KeywayEngine Cooling Type: Forced Air Coolingl,Fuel tank capacity: 6.5 liters,Oil capacity :1.1 litersDisplacement: 420CC,Carton size :56x42x48cm,Net weight: 30.5kg
【Portable and Durable 】Compact structure, small size and light weight.Compared with gasoline engines, it is more economical and lighter than horizontal axis diesel engines.Optimize the fuel system and intake and exhaust systems to save energy and fuel.
【Safe to Use 】 With oil alarm. With memory function, high sensitivity, add enough oil before starting, otherwise it will turn off the flame to protect the machine.It must be 1.1L Motorcycle 4-stroke engine oil to make sure the machine work well.Note：This petrol engine is a manual recoil start, not an electric start.
【Energy Saving】Easy to start carburetor, low fuel consumption,Iron camshaft，which is durable and long lasting,Anti-low temperature treatment pull wire 100% nylon does not lint.The rubber air filter gasket makes the carburetor tighter, does not leak, and has better performance.
【4 Stroke 420CC 15HP Air Cooling Engine】This commercial air-cooled diesel engine are the perfect small engines to power the equipment you use to maintain small agricultural machinery fields or home and yard.It can provide powerful torque and high RPM speed. Meet industrial quality standards and provide reliable performance.
